YN-FW-001
Yuniu fiberglass
2022-11-1

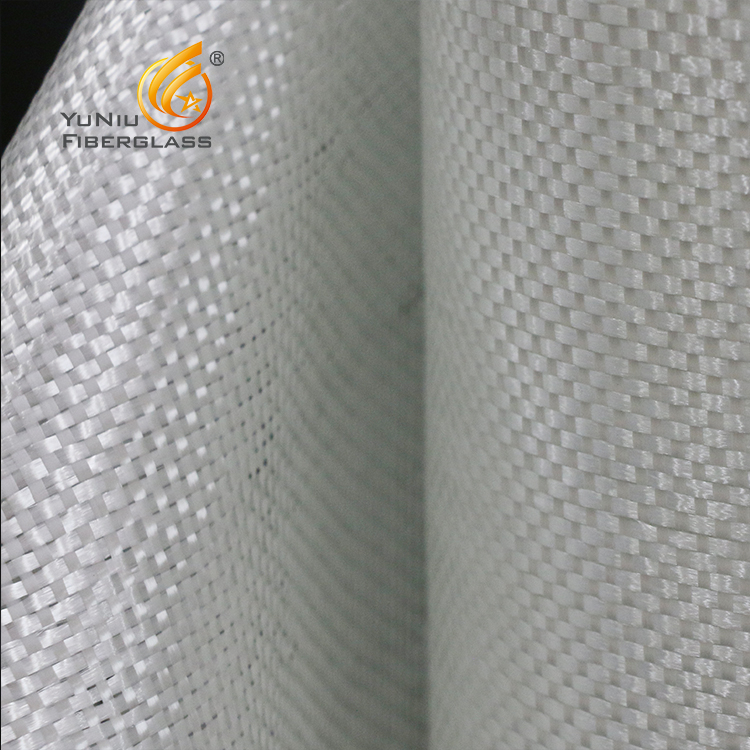

Low price of Fiberglass Fabric Woven Roving For Tanks
Product Description
Fiberglass Fabric Woven Roving is compatible with unsaturated polyester, vinyl ester, epoxy and phenolic resins. It’s widely used in hand lay up, mold press, GRP forming process and robot processes to manufacture boats, vessels, plane, automobile parts, panels, storage tanks .
Except for normal specifications,Special specification can be customized.
Specification
Item
|
Tex | Count of cloth (root/cm) | Unit area mass (g/m) | Breaking strength(N) |
Width(mm)
| |||
Wrap yarn | Weft yarn | Wrap yarn | Weft yarn | Wrap yarn | Weft yarn | |||
EWR200 | 180 | 180 | 6.0 | 5.0 | 200±15 | 1300 | 1100 | 30-3000 |
EWR300 | 300 | 300 | 5.0 | 4.0 | 300±15 | 1800 | 1700 | 30-3000 |
EWR400 | 576 | 576 | 3.6 | 3.2 | 400±20 | 2500 | 2200 | 30-3000 |
EWR500 | 900 | 900 | 2.9 | 2.7 | 500±25 | 3000 | 2750 | 30-3000 |
EWR600 | 1200 | 1200 | 2.6 | 2.5 | 600±30 | 4000 | 3850 | 30-3000 |
EWR800 | 2400 | 2400 | 1.8 | 1.8 | 800±40 | 4600 | 4400 | 30-3000 |
Product Features
1. Warp and weft roving aligned in a parallel and flat manner, resulting in uniform tension.
2. Densely aligned fibers, resulting in high dimensional stability and making handing easy.
3. Good mold ability, fast and complete wet in resins, resulting in high productivity.
4. Good transparency and high strength of composite products.
Product Usage
Main application:automotive, vessels, gratings, bathtub, FRP composite, tanks, waterproof, reinforcement, insulation, spraying,spray gun,mat,gmt,boat,csm,frp,panel,car body,knitting,chopped strand,pipe,gypsum mold,boat hulls,wind energy,wind blades,fiberglass boat hulls,boats fiberglass,fiberglass pools,fiberglass fish tank,fiberglass fishing boat,fiberglass molds,fiberglass rods,fiberglass swimming pool,fiberglass boats molds, fiberglass pool,fiberglass chopper gun,fiberglass spray gun, fiberglass water tank,fiberglass pressure vessel,fiberglass poles,fiberglass fish pond,fiberglass resin,fiberglass car body,fiberglass panels,fiberglass ladder,fiberglass insulation,fiberglass dinghy,fiberglass car roof top tent,fiberglass statue,fiberglass grating,fiberglass rebar,glass fiber reinforced concrete,fiber glass swimming pooland etc.
Packaging & Shipping
Woven roving could be produced into different widths,each roll is wound on a suitable cardboard tubes with inside diameter of 100mm,then put into a polythylene bag,fastened the bag entrance and packed into a suitable cardboard box.Upon to customer's request,this product could be shipped either with carton packaging only or with packaging,In pallet packaging,the products could be horizontally put on the pallets and fastened with packing straps and shrink film.
Shipping: by sea or by air
Delivery Detail:15-20 days after receive the advance payment
Company Information
Hebei Yuniu Fiberglass Manufacturing Co.,Ltd,established in 2012, is a professional fiberglass manufacturer in north China, which located at Guangzong County,Xingtai City, Hebei Province.China. As a professional fiberglass enterprise,mainly manufactures and distributes a wide range of E type fiberglass products, such as fiberglass roving,fiberglass chopped strands, fiberglass chopped strand mat,fiberglass woven roving, needled mat, fiberglass fabric and so on.These are widely used in construction industry, automotive industry, airplane and ship building area, chemistry and chemical industry, electrical and electronics, sports and leisure,the emerging field of environmental protection like wind energy, combination of varies of pipes and thermal insulation material.The E-glass products are compatible with the various resins,such as EP/UP/VE/PA and so on.
Our Advantage
Our well equipped infrastructure is crucial in the growth and expansion of our business operations. The sophisticated and modern facilities help us to develop Fiber-Glass Products effectively. Our infrastructure is spread over a large area and is segregated into manufacturing unit, quality division and warehousing unit. Our manufacturing unit is equipped with special purpose machines and requisite tools & equipment. With the use of these machines, we are able to manufacture our products in bulk quantity and meet the requirements of our clients. We make sure that Fiber-Glass Products render high quality standards. Our quality controllers regularly monitor entire stage of production process to ensure the perfect quality of our products. We adhere to latest technology and quality control procedure, which ensures quality standards and specifications. The company is able to offer first class quality and main products with full trace-ability by BV,SGS and ISO9001. Therefore, you could rest assure our perfect quality and service.
Our Services
Our company has our special professional after-sale service department, products have enjoyed a high prestige in domestic and popular in international market too. Our mission is to serve the global composite materials purchases, to make people’s life more safe, more environmental. Since established in 2012, with the perfect sales team at home and abroad.Our products have been sold to eighty-six countries.We now have market share in Europe,North and South America, Australia, Africa, the Middle East and South-East Asia. Give us a chance, and we will return you with satisfaction.We sincerely look forward to working with you hand in hand.
Q1:Are you a factory? Where are you located?
A: we are a manufacturer.
Q2:What's the MOQ?
A: Usually 1 Ton
Q3:Package & Shipping.
A: Normal package:carton(Incuded in the unite price)
Special Packge: need to charge according the actual situation.
Normal shipping :your nominated Freight forwarding.
Q4:When can I offer?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price pls call us or tell us in your email , so that we can reply you priority.
Q5:How do you charge the sample fees?
A: If you need a samples from our stock, we can provide to you for free, but you need to pay the freight charge.If you need a special size, We will charge the sample making fee which is refundable when you place an order.
Q6:What's your delivery time for production?
A:If we have stock , can delivery in 7 days ; if without the stock, need 7~15 days !
YuNiu Fiberglass Manufacturing
Your success is our business!
Any questions, please contact us freely.
