YN-FCM-001
Yuniu fiberglass
2022-08-15

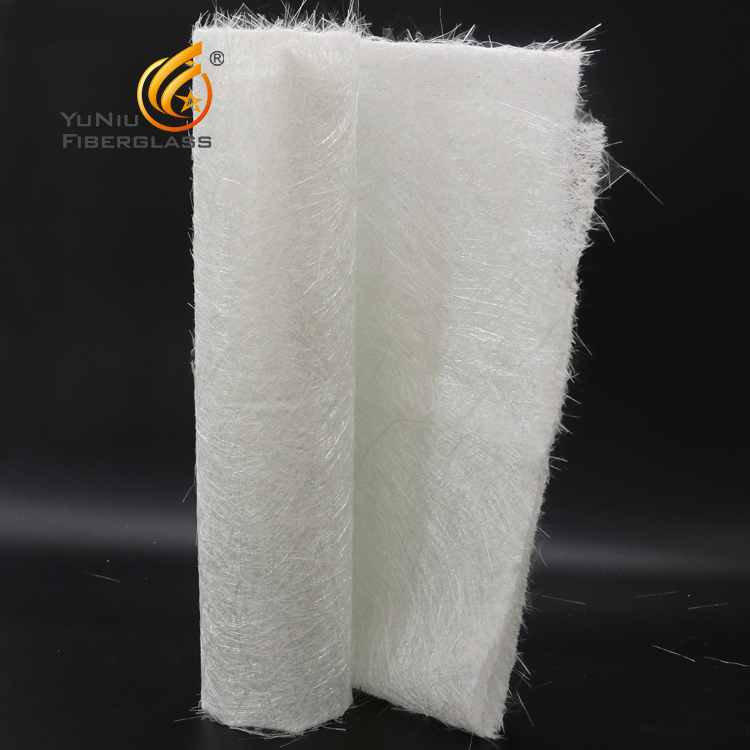

China manufacturer supply glass fiber chopped strand mat
Product Description
glass fiber chopped strand mat is a kind of reinforcing that made from continuous fiberglass strand, which is chopped
into a certain length, distributed in a random and non-directional position and bonded with binders.
It is suitable for hand lay-up, mold press, filament winding and mechanical forming etc.
Specification
Item | Standard weight(g/m2) | Width(mm) | Loss on ignition (%) | Moisture (%) | Compatible resins | |
EMC225 | 225 | 1040/1270/2080 ≤3300 | 2-6 | ≤0.2 | UP VE | |
EMC300 | 300 | 1040/1270/2080 ≤3300 | 2-6 | ≤0.2 | UP VE | |
EMC380 | 380 | 1040/1270/2080 ≤3300 | 2-6 | ≤0.2 | UP VE | |
EMC450 | 450 | 1040/1270/2080 ≤3300 | 2-6 | ≤0.2 | UP VE | |
EMC600 | 600 | 1040/1270/2080 ≤3300 | 2-6 | ≤0.2 | UP VE | |
EMC900 | 900 | 1040/1270/2080 ≤3300 | 2-6 | ≤0.2 | UP VE |
Product Features
1. Uniform thickness, softness and hardness good.
2. Good compatibility with resin, easy completely wet-out.
3. Fast and consistent wet-out speed in resins and good manufacturability.
4. Good mechanical properties, easy cutting.
5. Good cover mold, suitable for modeling complex shapes.
Product Usage
The mats are compatible with unsaturated polyester, vinyl ester and other various resins.
It’s mainly used in hand lay-up, filament winding and compression molding processes. The typical FRP products are panels, tanks, boats, complete set of sanitary equipment, automotive parts, cooling towers, pipes etc.
Package & Shipment
One roll in one polybag, then one roll in one carton, then pallet packing, 35kg/roll is standard single roll weight.
Shipping: by sea or by air
Delivery Detail:15-20 days after receive the advance payment
Company Information
Hebei Yuniu Fiberglass Manufacturing Co.,Ltd,established in 2012, is a professional fiberglass manufacturer in north China, which located at Guangzong County,Xingtai City, Hebei Province.China. As a professional fiberglass enterprise,mainly manufactures and distributes a wide range of E type fiberglass products, such as fiberglass roving,fiberglass chopped strands, fiberglass chopped strand mat,fiberglass woven roving, needled mat, fiberglass fabric and so on.These are widely used in construction industry, automotive industry, airplane and ship building area, chemistry and chemical industry, electrical and electronics, sports and leisure,the emerging field of environmental protection like wind energy, combination of varies of pipes and thermal insulation material.The E-glass products are compatible with the various resins,such as EP/UP/VE/PA and so on.
Our Advantage
Our well equipped infrastructure is crucial in the growth and expansion of our business operations. The sophisticated and modern facilities help us to develop Fiber-Glass Products effectively. Our infrastructure is spread over a large area and is segregated into manufacturing unit, quality division and warehousing unit. Our manufacturing unit is equipped with special purpose machines and requisite tools & equipment. With the use of these machines, we are able to manufacture our products in bulk quantity and meet the requirements of our clients. We make sure that Fiber-Glass Products render high quality standards. Our quality controllers regularly monitor entire stage of production process to ensure the perfect quality of our products. We adhere to latest technology and quality control procedure, which ensures quality standards and specifications. The company is able to offer first class quality and main products with full trace-ability by BV,SGS and ISO9001. Therefore, you could rest assure our perfect quality and service.
Our Services
Our company has our special professional after-sale service department, products have enjoyed a high prestige in domestic and popular in international market too. Our mission is to serve the global composite materials purchases, to make people’s life more safe, more environmental. Since established in 2012, with the perfect sales team at home and abroad.Our products have been sold to eighty-six countries.We now have market share in Europe,North and South America, Australia, Africa, the Middle East and South-East Asia. Give us a chance, and we will return you with satisfaction.We sincerely look forward to working with you hand in hand.
Q1:Are you a factory? Where are you located?
A: we are a manufacturer.
Q2:What's the MOQ?
A: Usually 1 Ton
Q3:Package & Shipping.
A: Normal package:carton(Incuded in the unite price)
Special Packge: need to charge according the actual situation.
Normal shipping :your nominated Freight forwarding.
Q4:When can I offer?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price pls call us or tell us in your email , so that we can reply you priority.
Q5:How do you charge the sample fees?
A: If you need a samples from our stock, we can provide to you for free, but you need to pay the freight charge.If you need a special size, We will charge the sample making fee which is refundable when you place an order.
Q6:What's your delivery time for production?
A:If we have stock , can delivery in 7 days ; if without the stock, need 7~15 days !
YuNiu Fiberglass Manufacturing
Your success is our business!
Any questions, please contact us freely.
